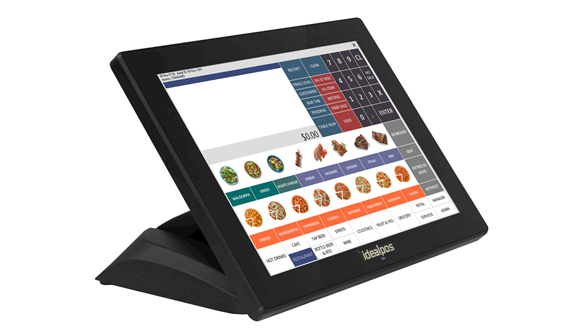

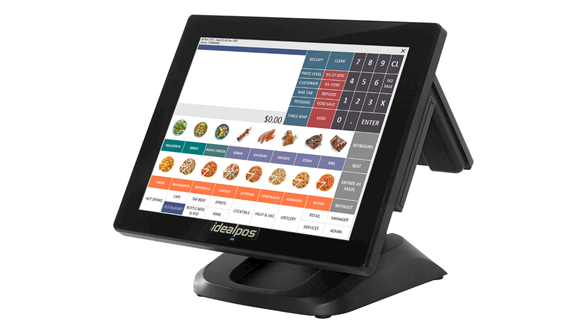

Idealpos Ares Terminal

The Ares POS terminal is highly sophisticated, sporting high-quality workmanship in a superior product. We are proud to offer this terminal alongside our other products.

Download a brochure

Idealpos Ares Terminal
Idealpos Ares Terminal
Idealpos Ares Terminal
  • Intel® Celeron® J1900 Quad Core CPU
  • 15" LED Capacitive Touch Screen

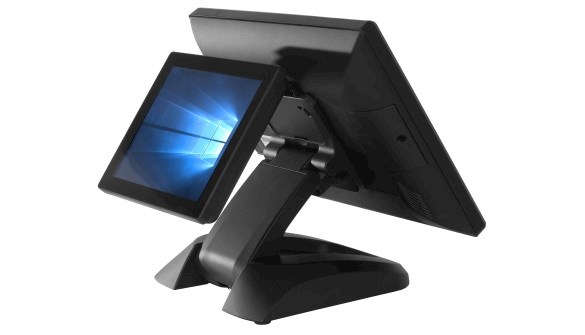

  • Multiple Stand Configurations allow for use in unique situations
  • Magnetic Card and RFID Reader Combo
  • 64GB 2.5" Solid State HDD

Designed To Perform

Although there are many POS terminals on the market, this terminal is the result of customer feedback on what is required to make a terminal work for you, by exceeding all expectations. Fast and responsive, it's able to be used in high-pressure environments to get the job done quickly!

Well Positioned

Whether you need your terminal to be upright and angled for multiple users, or you have a small space and the requirements are for a shorter terminal, this one meets your needs. With the ability to offer many different configurations to staff memebers of any height, your staff will be able to comfortably be able to perform at their best.

Peripheral Friendly

Not only can you use the combination RFID and Card Reader, but you have the option to connect many more required devices such as scanners, printer, consoles and more. Up to 6 USB 2.0 ports, 3 Serial ports and an additional VGA power enabled port. No matter what is required to connect to the terminal, it's possible!

Ease of Access

While it's wonderful to have a working terminal 100% of the time, every now and again something can go wrong. Being able to quickly change the most likely culprit is a huge advantage. The HDD can easily be replaced in a matter of minutes, and upgrading the CMOS battery also takes a little bit longer. Hopefully you never have need of these features.

Robust Contruction

With a full metal base attached securely to the terminal, it will remain sturdy through repeated use. The large heavy base allows for the terminal to withstand accident bumps which could damage machines using moulded plastic bases. The base is able to be removed for attachment to a VESA mount.

More Information...

Please feel free to download a brochure.

Download brochure

LCD & Touch Panel

Model Number Ares
Touch Panel True Flat Projected Capacitive Touch
Display 15" TFT LCD Panel (LED Backlight)
Resolution 1024 x 768 Pixels

System Configuration

Intel® Processor Intel® Celeron® J1900 Quad Core CPU
Memory 4GB DDR3 SO-DIMM RAM
Storage 64GB 2.5" Solid State Hard Drive
Power Supply 65W External Adapter. Voltage +19VDC 3.42A max.
Operating System Windows® 10 IoT Enterprise 2016 LTSB - Entry Edition
System Dimensions 370 x 300 x 236mm
System Weight 5.68Kg
VESA Mount VESA 100*100mm compliant
Product Certification CE / FCC
Operating Temperature 0° C to 40° C

I/O Port Connectivity

USB Port 6 x USB 2.0
Serial Port 3 x RS-232 (RJ45 connecter)
Network LAN 1 x Gigabit Ethernet RJ45
VGA Display 1 x DB-15 VGA Port
Cash Drawer 1 x RJ-11 12v

Optional Peripherals

Magnetic Card Reader 3 Track Serial Interface
RFID Clerk Wristband Reader 13.56 MHz Frequency/ Mifare 1K IC RFID Wristbands
MSR/RFID Combo Magnetic Card Reader and RFID Combo
Customer Display 9.7” LED Customer Display
VESA Mount VESA 100*100mm Compliant
