Idealpos Hardware i15 J1900 POS Terminal

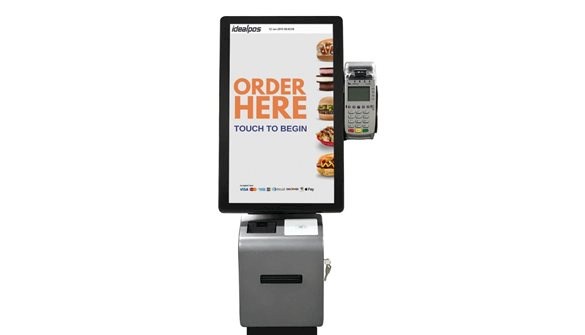

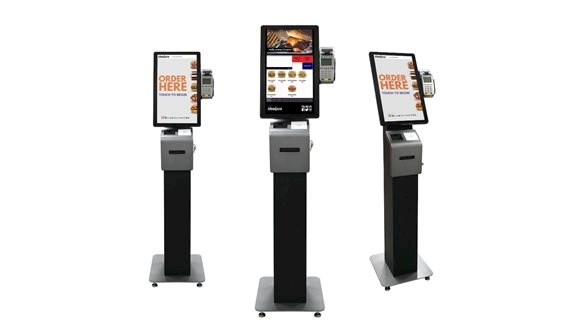

Idealpos Alfred Self-Serve Kiosk

The Idealpos Alfred Self-Serve Kiosk is a Windows-based interative touchscreen, perfect for streamlining your hospitality or retail processes. The Alfred is built for longevity with rugged construction including splash and dust resistant touchscreen technology minimising the need for repairs and extends lifecycle.

Modular design and interchangeable configurations
Integrated peripherals
Fanless technology helps protect kiosks from damage from dust or dirt, increasing longevity
Splash and dust resistant touchscreen technology
Time saving and convenient

Technical Specifications
CPU	Intel Core i3-6100U (SKYLAKE-U Co-lay)
Memory	DDR4 Standard Spec: 4GB, 8GB, 16GB
Storage	M.2 PCIe Gen 3.0 x2 SSD:128G / 256G
LCD Panel Size	21.5 inch
LCD Panel Resolution	1080 x 1920
LCD Panel Brightness	300nits
LCD Panel View Angle	89 / 89 / 89 / 89
Touch	Projected Capacitive Touch
Audio	1 x Speaker 3W
Adaptor	AC-In 100 240V / DC-Out 12V, 120W
Barcode Scanner	2D
External I/O Interface	2 x Serial ports, RS232 (RJ45), 0V/5V/12V selection by BIOS (COM1, COM2) 2 x LAN, (IEEE 802.3 10/100/1000 Mbps Ethernet, RJ45) 1 x RJ11 port supports 2 cash drawer with 24V / 12V by jumper setting 1 x DC+12V out 4 x USB 3.0 (USB 3.0/2.0) 1 x DC+12V input 1 x Audio (1* Line-out) 1x HDMI 1x VGA
Expansion I/O Options	Additional 2x USB3.0/2.0 + 1x 12V & 1x 24V Powered USB
Dimensions	AD-215 Counter top: 12.76 x 32.2 x 13.19 in. AD-215 Floor Stand: 14.96 x 62.2 x 15.83 in.
Operating System	Windows 10 IoT LTSB (64bit)
Operation Temperature	0C to + 40C
Storage Temperature	20C to + 60C
Operation Humidity	15 to 85% without condensation
Storage Humidity	15 to 85% without condensation

Technical Specifications

CPU

Intel Core i3-6100U (SKYLAKE-U Co-lay)

Memory

DDR4 Standard Spec: 4GB, 8GB, 16GB

Storage

M.2 PCIe Gen 3.0 x2 SSD:128G / 256G

LCD Panel Size

21.5 inch

LCD Panel Resolution

1080 x 1920

LCD Panel Brightness

300nits

LCD Panel View Angle

89 / 89 / 89 / 89

Touch

Projected Capacitive Touch

Audio

1 x Speaker 3W

Adaptor

AC-In 100 240V / DC-Out 12V, 120W

Barcode Scanner

External I/O Interface

2 x Serial ports, RS232 (RJ45), 0V/5V/12V selection by
BIOS (COM1, COM2)
2 x LAN, (IEEE 802.3 10/100/1000 Mbps Ethernet, RJ45)
1 x RJ11 port supports 2 cash drawer with 24V / 12V by
jumper setting
1 x DC+12V out
4 x USB 3.0 (USB 3.0/2.0)
1 x DC+12V input
1 x Audio (1* Line-out)
1x HDMI
1x VGA

Expansion I/O Options

Additional 2x USB3.0/2.0 + 1x 12V & 1x 24V Powered USB

Dimensions

AD-215 Counter top: 12.76 x 32.2 x 13.19 in.
AD-215 Floor Stand: 14.96 x 62.2 x 15.83 in.

Operating System

Windows 10 IoT LTSB (64bit)

Operation Temperature

0C to + 40C

Storage Temperature

20C to + 60C

Operation Humidity

15 to 85% without condensation

Storage Humidity

15 to 85% without condensation

Accessories
Payment Bracket	Support Verifone, Ingenico, PAX
RFID Reader or ADA Keypad	Space reserved, by customer request
Wheel Kit	2 Wheels & 1 Holder
Wi-Fi	IEEE 802.11 a/b/g/n/ac

Accessories

Payment Bracket

Support Verifone, Ingenico, PAX

RFID Reader or ADA Keypad

Space reserved, by customer request

Wheel Kit

2 Wheels & 1 Holder

Wi-Fi

IEEE 802.11 a/b/g/n/ac
